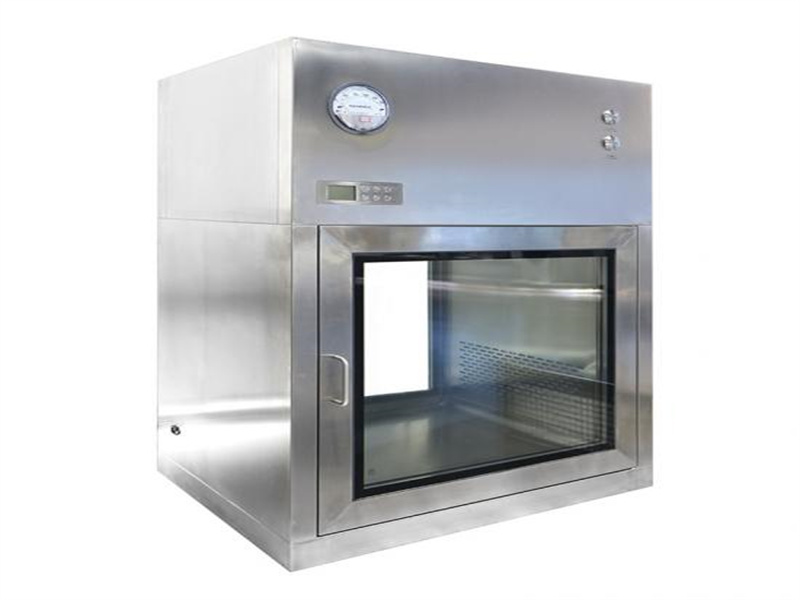

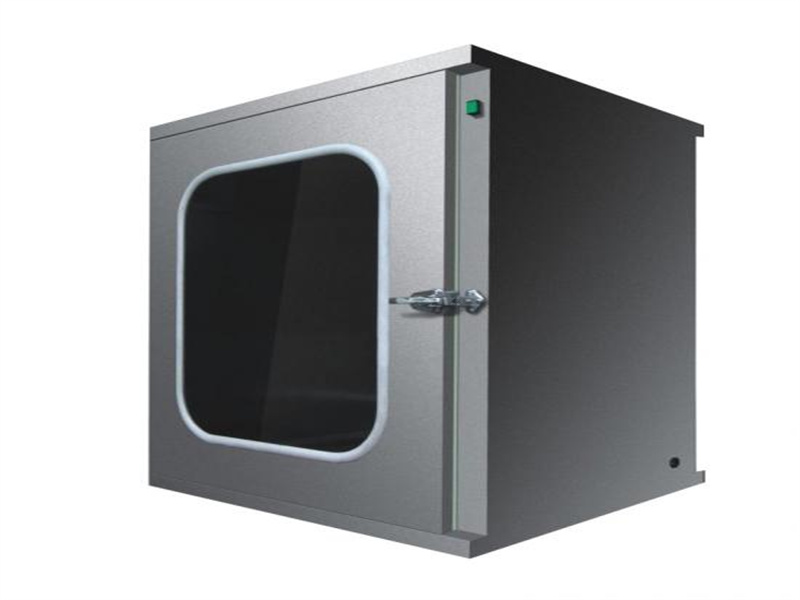

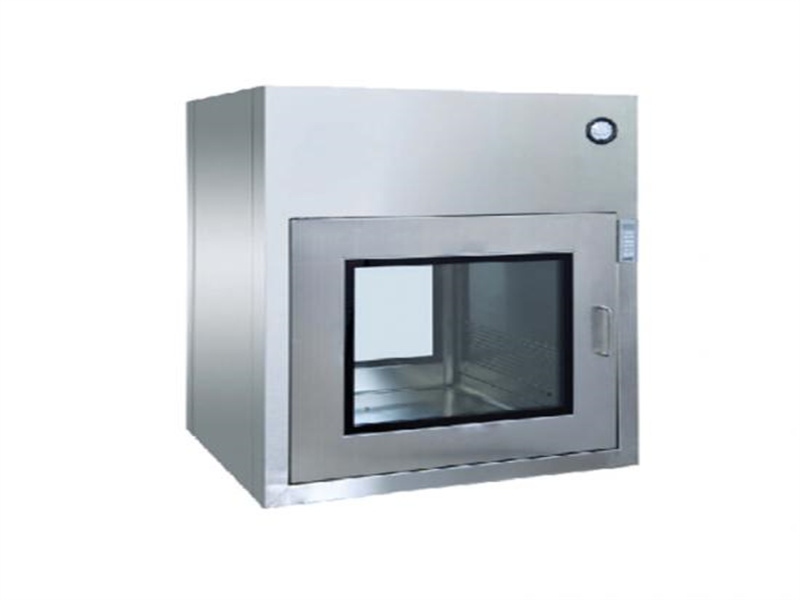

High-quality Stainless Steel Pass Box With UV Light and Automatic Door System

Wiskind pass box is a kind of auxiliary equipment in clean room, which is mainly used for the transfer of small items between clean area and clean area, and between clean area and non-clean area, in order to reduce the opening frequency of clean room and reduce the pollution to the minimum level.Cleanroom Pass-through Box made of stainless steel plate, smooth and clean.

The double door interlocks with each other, effectively preventing cross contamination. It is equipped with electronic or mechanical interlocks and equipped with ultraviolet sterilizing lamp.Cleanroom Pass Through Box is widely used in micro science and technology, biological laboratories, pharmaceutical factories, hospitals, food processing industry, LCD, electronics factories and other places that need air purification.

Product features:

1.The box body is made of stainless steel SUS304, with arc transition in the working area.

2.Both sides of the door are equipped with interlocking devices to ensure that both sides of the door cannot be opened at the same time.

3.Double tempered glass window is embedded.

4.The clean transfer window has the function of automatic blowing, in the process of goods transfer, it can effectively remove the dust carried by the surface of the goods.

Specification:

Configuration of cleanroom pass box:

1. Stainless steel 304 material, internal arc structure, easy to clean.

2. With PAO injection interface and test interface, using 304 stainless steel fast connector

3. Equipped with H14 tank sealing high efficiency filter, with high efficiency differential pressure gauge.

4. With ultraviolet sterilization lamp, sterilization time can be arbitrarily adjusted, and with sterilization timing and sterilization time cumulative function, can be arbitrarily set whether the sterilization lamp and fan start at the same time.

5. Self-developed LCD panel controller, two magnetic lock interlock, automatic and manual two for users to set, in the automatic mode has a variety of functions users can set, with time and function display, with call function.

6. Can be arbitrarily set after closing the door and automatically start the fan air supply mode.

7. Built-in door, double black tempered glass, with desiccant.

8. Fan, customized fan, air supply time can be adjusted.

9. Design fresh air inlet (located in high clean area) to increase internal positive pressure and adjustable air supply.

10. Accept special design from users.

HOW TO USE?

Stainless Steel Pass box shall be managed according to the cleanliness level of the higher cleaning area connected with it. For example, pass box connected with the code spraying room and the filling room shall be managed according to the requirements of the filling room.After work, the operator in the clean area shall clean the internal surfaces of the pass box and turn on the ultraviolet sterilizing lamp for 30 minutes.

1. Materials in and out of the clean area must be strictly separated from the people flow channel, by the production workshop materials in and out of the special channel.

2. When the materials enter, the raw and auxiliary materials shall be sent to the temporary storage room of the workshop through the pass box after the process leader of the preparation shift organizes personnel to take off the package or clean the surface;After the outer packing is removed from the outer temporary storage room, the inner packing materials are sent to the inner compartment through the delivery window.The workshop integrator handles the material handover with the person in charge of the preparation and inner packing process.

3. When passing through the High-quality Stainless Steel Pass Box, the provisions of "one opening and one closing" of the internal and external doors of the pass box must be strictly implemented. The two doors cannot be opened at the same time.After the material is put into the outside door, close the door first, then open the inside door and take out the material, close the door, and so on.

4. When the materials in the clean area are sent out, they shall first be transported to the relevant material intermediate station, and be removed from the clean area according to the opposite procedure when the materials come in.

5. All semi-finished products shipped out of the clean area should be sent to the temporary storage room through the pass box and transferred to the outer packing room through the logistics channel.

6. Materials and wastes that are easily contaminated shall be transported to non-clean areas through their special pass box.

7. After the entry and exit of materials, the site and delivery window of each private room or intermediate station should be cleaned up in a timely manner, the internal and external access doors of the pass box should be closed, and the cleaning and disinfection work should be done.

Installation method:

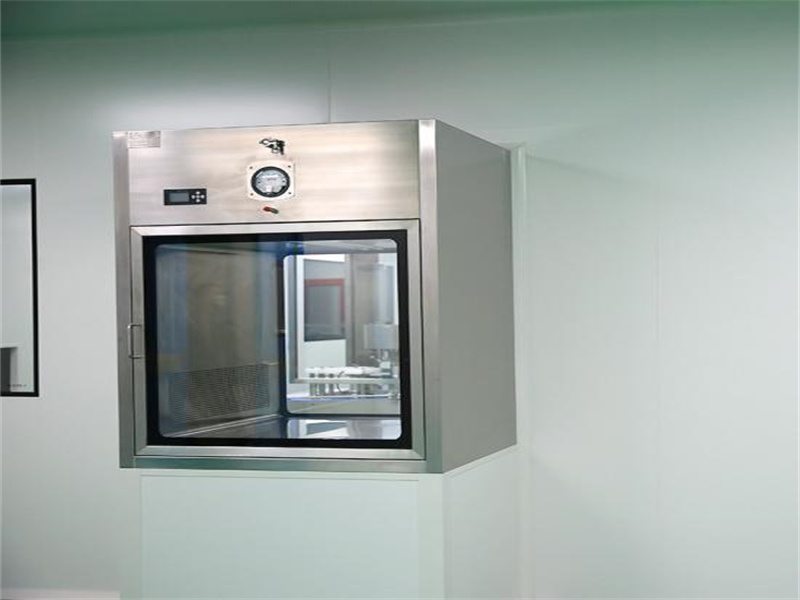

Choose a convenient position in cleanroom wall panel cotton, and then open the hole, the hole is generally larger than the outside diameter of the pass box about 10MM, put the pass box into the clean room wall, generally installed in the middle of the wall panel, maintain the balance and fixed, with rounded corners or other decorative strips to decorate the pass box and wall gaps, play glue seal decoration can be.
