Low-energy Magnetic Attraction LED Ceiling Light Panels For High-performance Clean Room

Specification

Remark: all products can be emergency, add -e after the model, which means the product has emergency function, such as yj103a-e, emergency time is 90 minutes or 180 minutes.

Features:

1. Light guide panel: professional optical-grade light guide panel, high uniformity of light output, whole light effect exceeding 100lm/w.

2. Light source: special imported chip for clean lighting, blue light level is RGO, harmonic wave meets the national standard, and light attenuation meets the US LM80 standard.

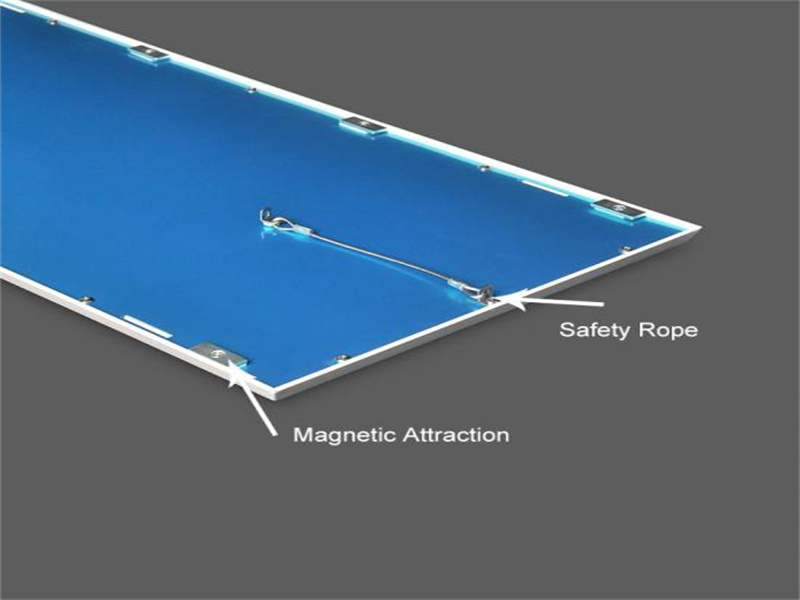

3. Anti-falling rope: the lamp is equipped with an anti-falling design to avoid momentary impact or other accidents that cause the lamp to fall off during high-intensity construction of the interlayer.

4. Structure: streamlined structure design, the installation surface is uniform and smooth, no sharp corners or seams, no dust accumulation / collection, and no impact on cleanroom laminar flow.

5. Protection level: using a unique sealing technology, regular protection can reach IP54, to meet the application in various clean environments, with convenient disinfection and cleaning.

6. Back panel: high-strength galvanized steel panel to ensure the overall strength and impact resistance of the lamp.

7. DC low-voltage plug-in terminal: human body safety voltage, no hidden danger of electric shock, fast and convenient installation and maintenance.

8. Magnetic installation: the lamp comes with a permanent strong magnet, allowing it to tightly attach to the metal wall panel. The gap after installation is less than 1mm, and the installation and maintenance are easy.

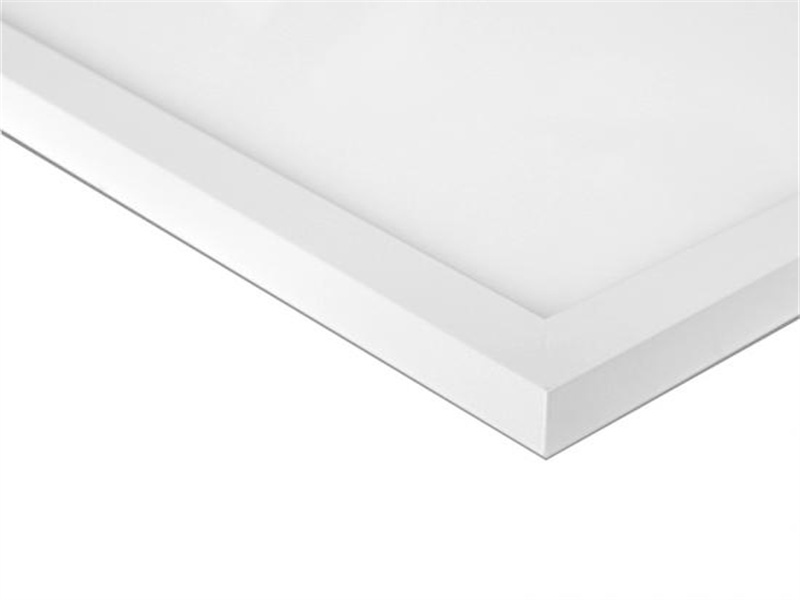

9. Frame material: 6063 aviation aluminum

10. Process: adopt the nano coating technology to ensure resistance to corrosive gases and reagents such as hydrogen peroxide / ethanol / phenol.

Requirements for lighting

1. try to use the top suction Ming.

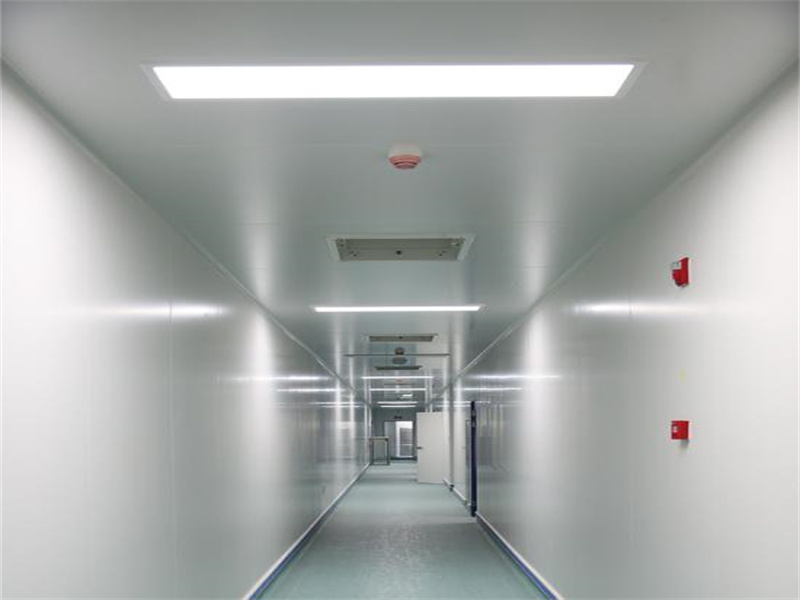

2. The lighting standard is generally 200-500 lux, and the auxiliary room, corridor and air lock room are generally 150-300 lux.

3. The uniformity value of illumination is greater than 0.7.

4. Illumination glare value is less than 22.

5. Emergency lighting, the quantity should be 20% of general lighting.

Lamps and lanterns requirements

1. clean room lighting lamps generally use efficient, anti - glare lamps.

2. The lighting fixtures in the clean room must be strobe free, noiseless and anti-interference when working.

3. The structure and appearance of lamps cannot affect the air flow mode in the clean room.

4. the lamp frame is smooth, not easy to dust, easy to clean, no special edges and corners, and cleanroom ceiling panel installation, beautiful and generous.

5. the surface of lamps and lanterns to resist corrosion, oxidation.

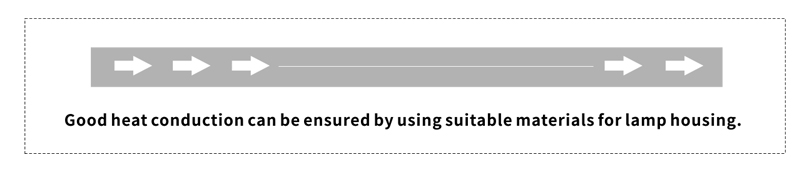

Good heat dissipation system

Lamps and lanterns should be kept in a bright state in a clean space for a long time. Good heat dissipation system is required to ensure the normal work of lamps and lanterns.

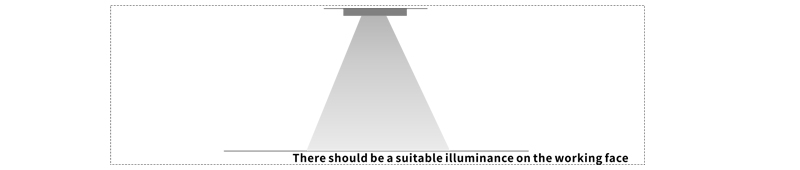

Appropriate lighting effect

As a controlled environment, suitable lighting effect must be required to meet the requirements of clean environment.

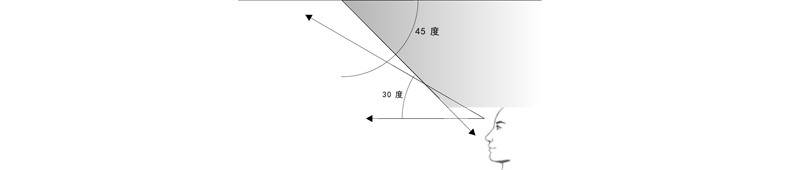

Soft light

Work under lamplight for a long time, lamps and lanterns require anti-glare function, prevent visual fatigue and damage vision.
