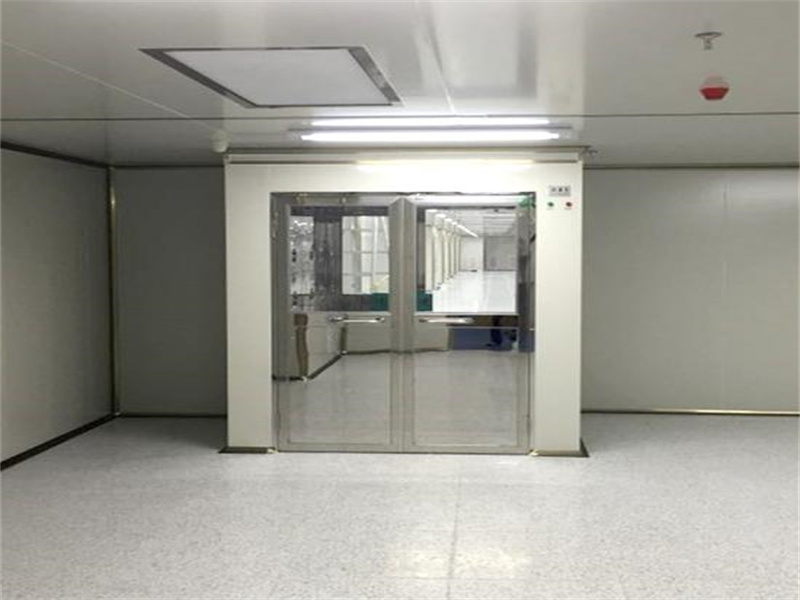

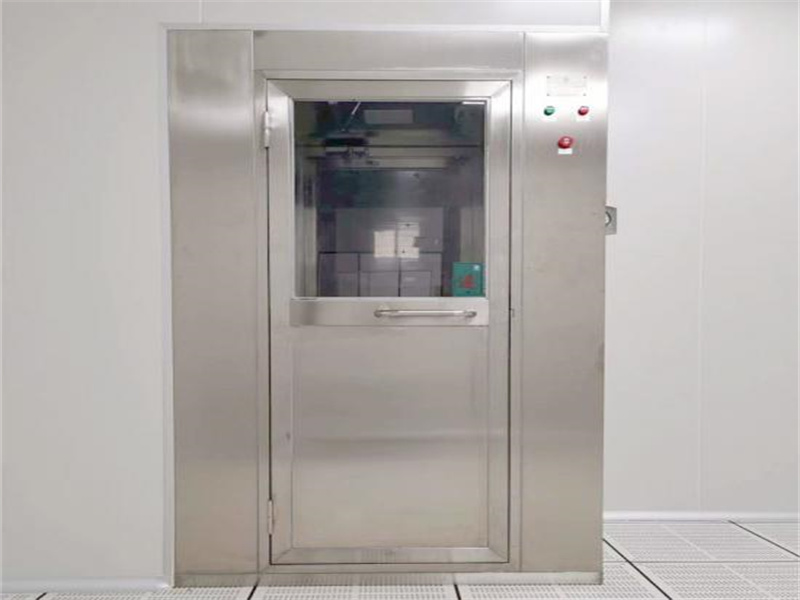

Manual Double Open The Door Clean Cargo Shower For Pharmaceutical Industry

The cargo shower room is the necessary passage for the goods to enter the clean room, and it can reduce the pollution problems caused by the goods entering and leaving the clean room. The two doors of the cargo shower room are electronically interlocked, which can double as the air lock room to prevent unpurified air from entering the clean room. The high-tech intelligent voice cargo shower room has a voice prompt system and an automatic voice system when blowing Prompt, humanized voice prompts give people a friendly feeling and achieve effective purification effect.

Product Name: Cargo Shower Room

Specifications: W2000 × D3000 × H2180mm (outside)

                     W1500 × D2860 × H1980mm (inside)

Configuration and technical parameter description:

1. Material of cabinet and inner wall:

  a. The box is made of high-quality 304 # stainless steel plate, and the surface is naturally sanded.

  b. The material of the inner wall is the same as that of the box.

  c without backplane.

2. Two-door electronic interlock (electric lock, door sensor, relay constitutes an interlock system).

3. Door material:

  a. The door frame is made of 304 stainless steel sanding plate.

  b. The door core frame is welded with t1.0×30×60mm stainless steel sanded flat through 304 material.

  c. The upper half of the door core is made of t5.0mm transparent tempered glass.

  d. The lower half of the door core sealing plate is made of stainless steel sanding plate 304.

4. Power supply: 3P / AC380V / 50Hz / 4.5KW.

Product Features:

1. It is used for entering and exiting people or goods in the high-level clean area and low-level clean area to prevent unclean air from entering the high-level clean area.

2. A blow-cleaning treatment device is set up in the work area to eliminate the dust on the surface of the figure, and it has the function of an airlock chamber.

3. Voice prompts, automatic control, infrared sensor, automatic spray on both sides of the wind.

4.Nozzle blowing wind speed can reach 20-23m/s, blowing time can be adjusted from 10 to 99 seconds.

5. The door closer device ensures that the door cannot open by itself when it is not in operation.

6. The interlocking device ensures that the two doors cannot be opened at the same time in the working state, which is safe and reliable.

7. The bottom surface of the air shower room is made of stainless steel, which does not produce dust, is resistant to abrasion, corrosion and easy to clean.

8. The door glass window can visit the working area at any time, easy to use.

9. High-efficiency filter efficiency: 99.99%@0.3um.

Goods use:

The cargo shower room is the necessary passage for the goods to enter the clean room, and it can reduce the pollution problems caused by the goods entering and leaving the clean room. The two doors of the cargo shower room are electronically interlocked, which can double as the air lock room to prevent unpurified air from entering the clean room. The high-tech intelligent voice cargo shower room has a voice prompt system and an automatic voice system when blowing Prompt, the humanized voice prompt gives a friendly feeling and achieves an effective purification effect. The clean air stream filtered by the high-efficiency filter is sprayed onto the surface of the object from various directions by a rotatable nozzle, which effectively and quickly removes dust particles. The air of the dust particles is filtered by the primary and high-efficiency filters and recirculated to the air shower area.
