What is gypsum panel

Gypsum panel raw materials are DSG, starch, foaming agent, kraft paper, etc. Standard paper faced gypsum panel consists of a face paper, a back paper and a gypsum core. 50mm double gypsum rockwool cleanroom panel has a fire resistance limit of 1 hour. Class A combustion performance.

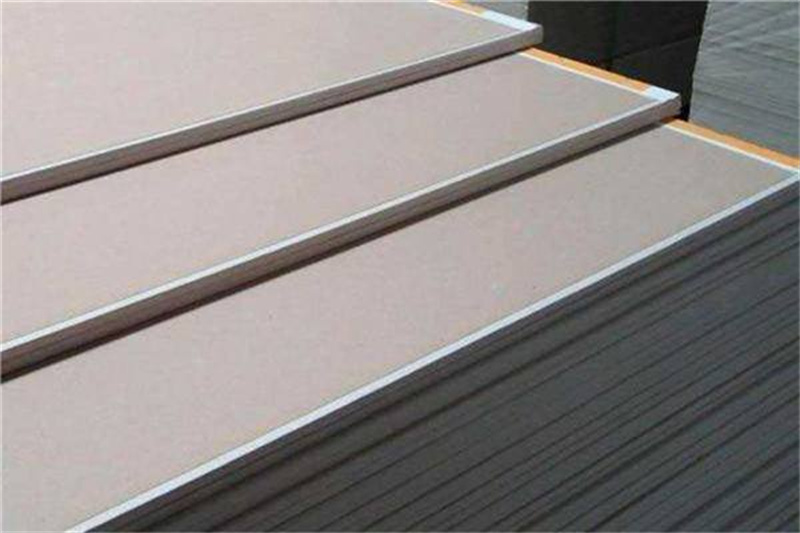

Standard paper faced gypsum panel:

Standard paper faced gypsum panel consists of a face paper, a back paper and a gypsum core. It can meet the requirements of fire protection, sound insulation, heat preservation and building structural strength; it is used for building interior partition walls and indoor ceilings.

Water-resistant paper-faced gypsum panel:

Water-resistant paper-faced gypsum panel is composed of face paper, back paper and gypsum core, both paper and gypsum core have been treated for water resistance. Water-resistant paper-faced gypsum panel is suitable for interior walls or ceilings of buildings with high humidity, such as toilets, kitchens, showers, etc., and the surface can be veneered with bricks.

Fire-resistant paper-faced gypsum panel:

Fire-resistant paper-faced gypsum panel is composed of front paper, back paper and gypsum core, and the gypsum core is added with glass fiber and other additives. It has excellent fire performance, and the fire stability is greater than 20 minutes. Fire-resistant paper-faced gypsum panel can be used in building parts with high fire protection requirements, such as firewalls, steel structure maintenance, stairs, elevator shafts or inner partition walls, etc.

Gypsum panel as the core panel can effectively avoid the occurrence of brine return, and the concept of custom-sized right-angled gypsum panel is proposed, which solves the problems of strength and cutting of gypsum panel.

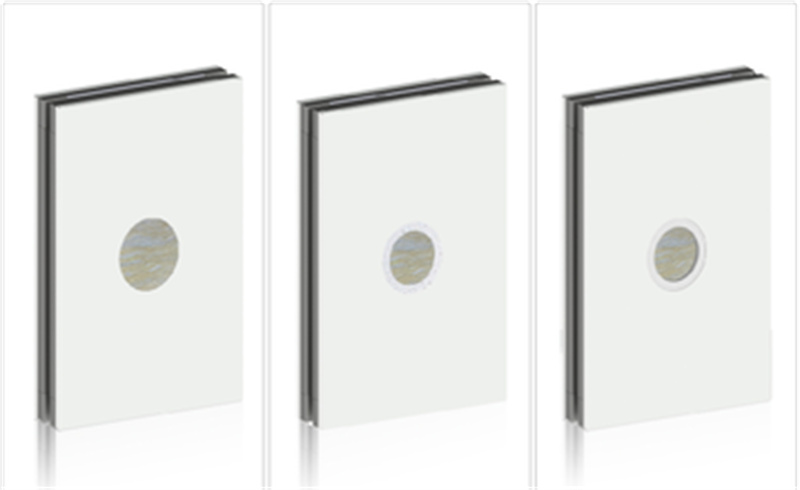

The advantages of paper-faced gypsum panel as a cleanroom color steel panel:

1. Physical properties, panel flatness, high length, width, diagonal, thickness and precise dimensions. The panel has good flexibility and high strength.

2. Chemical properties, the raw materials of gypsum panel are DSG, starch, foaming agent, kraft paper and so on. It is not easy to produce chemical reaction and no return to halogen phenomenon.

3. Advantages of customized gypsum panel, the special formula for customized panel has higher strength, no need to cut the customized size, improve production efficiency, and generate less construction waste.

4.Gypsum panel is used as a backing panel: the surface flatness is better than that of MDF, which improves product quality and lowers the cost of use, and can be reused.
